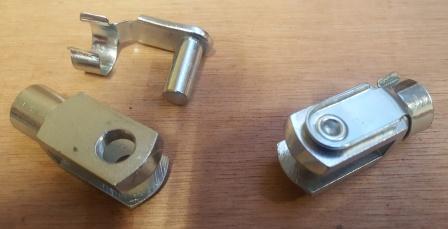

Bolt on couplings

Bolt on coupling using an M8 through the frame into the coupling itself
Comes complete with self locking (via a spring) 8mm pin.
£3.50 each
clevis_coupler

Single pocket bolt on coupling
simple slide through construction and bolting to a bufferbeam locks the pockets in place.
101mm wide, 50mm tall and 39mm deep
8mm pin hole 16mm from back plate
Mounts via two M8 bolts at 85mm centres
£8.20 each
single_coupler

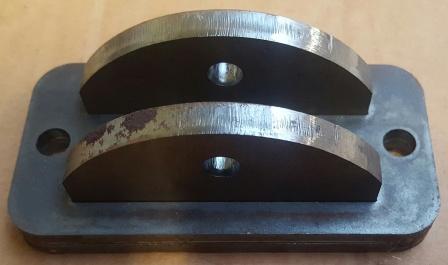

Double pocket bolt on coupling
simple slide through construction and bolting to a bufferbeam locks the pockets in place.
101mm wide, 75mm tall and 39mm deep
8mm pin hole 16mm from back plate
£12.20

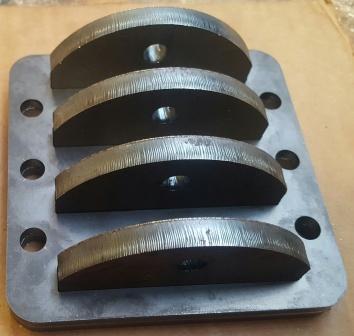

triple pocket bolt on coupling
simple slide through construction and bolting to a bufferbeam locks the pockets in place.
101mm wide, 100mm tall and 39mm deep
8mm pin hole 16mm from back plate
Mounts via six M8 bolts at 85mm centres width and 25mm centres height
£15.20 each
triple_coupler
