Ready to Run £750
Unpainted Kit £680

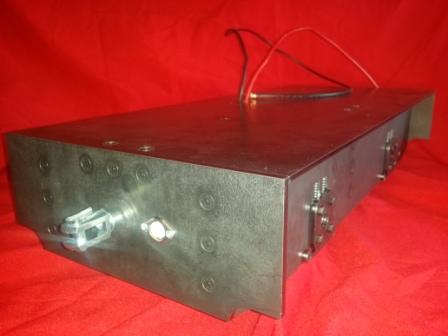

590mm long (plus couplings) x 260mm wide x 135mm tall

Fully assembled and powder coated in black.

Sprung to take the weight of up to 2 x 88Ah batteries

Geared for 5mph on 12v and 10mph on 24v

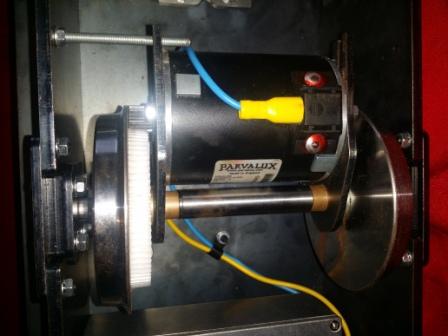

Uses 2 x 12v 150W UK built  Parvalux motors giving up to 600W each on 24V

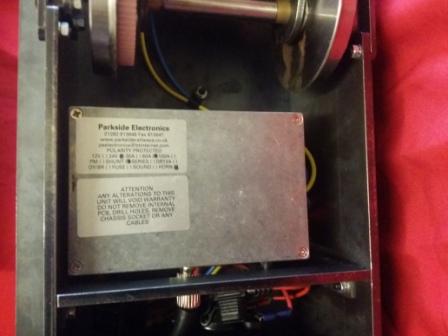

Includes 60A reversing speed controller and handset

Axleboxes fitted with sealed ball bearings

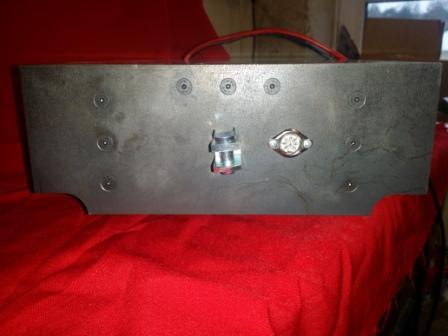

Handset can be plugged into either bufferbeam and is set up to be able to be multiple headed with any other parkside railway loco or chassis

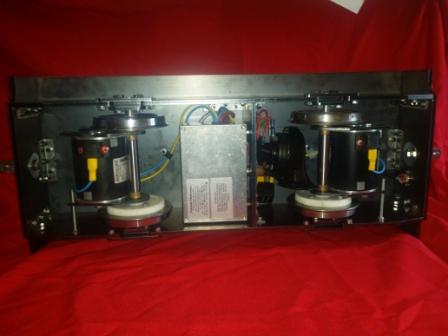

All self contained within the frames. Only the battery wires come above.

Optional extra horn installation for £40

Simply add batteries a body and enjoy

Ready to Run £750
Unpainted kit £680


Wheels are press fit at over 1 ton and are not Loctited in order to prevent loose wheels from long term vibration and knocks.
