Our Controllers are rated at 30A with 60A overload and are 12v unless requested otherwise and are ideal replacements to trolleys already using our controllers (via Standel Dawman) or other brands including Hazeldine.
They are all British designed, hand built and tested.
They are fitted with up to 50cm long battery leads and motor leads (standard lengths are supplied if no other option is asked for). The battery leads have anderson connectors that allow a quick connect to the included battery leads. The motor leads come with a male and female blade crimp fitted.
They are fitted with flanged lids for bolting into place. They are 121x66x40mm.
As the designer, manufacturer and supplier of our speed control units we are able to offer complete systems at a fraction the cost of most other suppliers.

Controllers
We offer them in DIN or Jack form priced at 39.50 each

dinjack









DIN controller with 5 pin socket.    Jack controller with Jack socket

Handsets
Handsets are available in four forms, each comes with the required Jack or DIN plug and 1.2M cable.
There is also the option for a "lazy" switch at 5 extra which allows you to turn the controller on and off without altering the speed setting. (Supplied with waterproof cover)

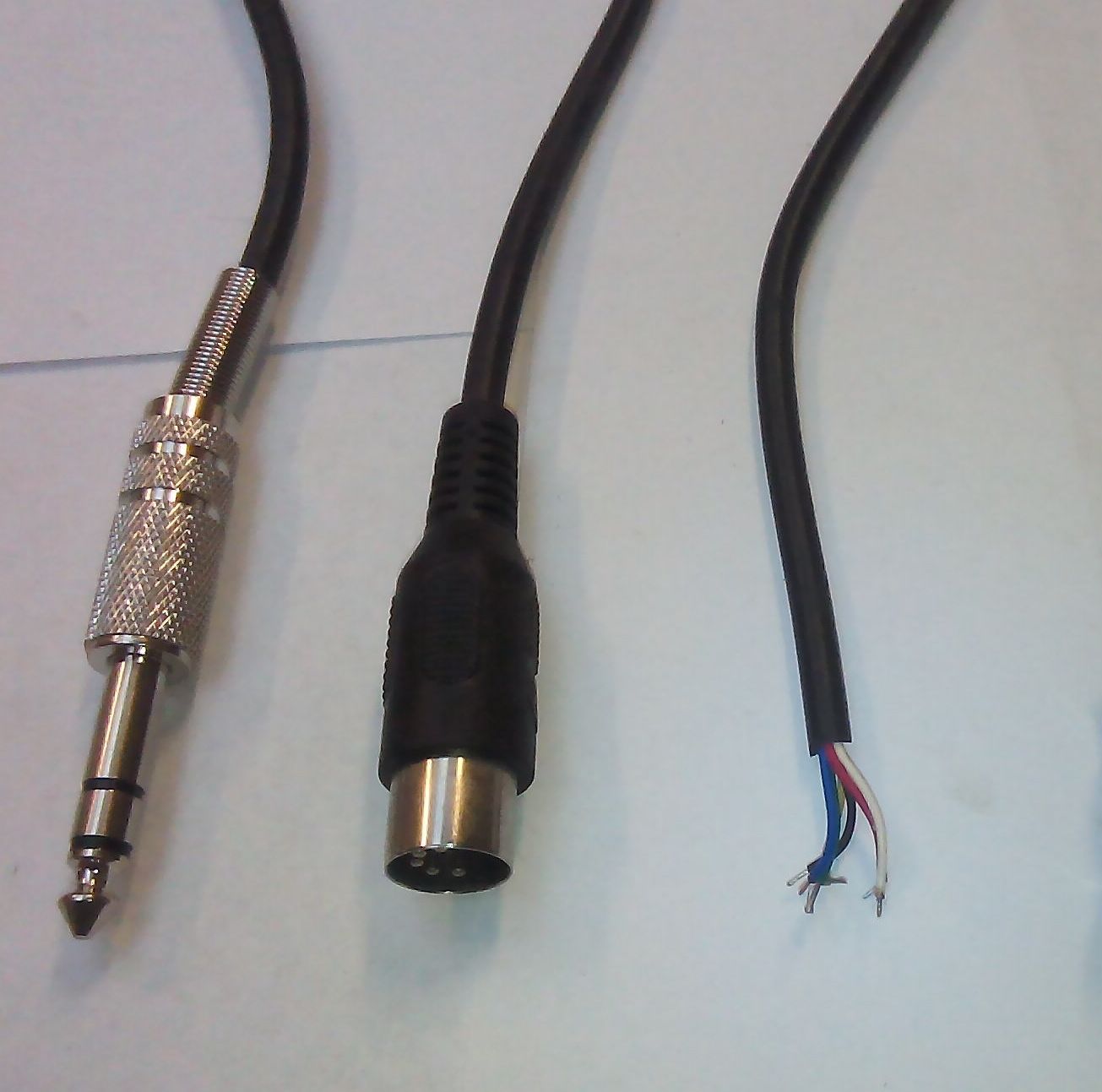

Wired handset with plug, no controls 3.50
wired-no_pot
This handset is ideal if you want to replace the control system but not alter the hand controls. The wires allow you to connect up to whatever control knob you already have equipped.



Wired handset 8.50
wired







Small handset 10.50
peeweeThis handset features the lazy switch (which is optional) and has a terminal block inside allowing the wire to be removed to thread through your trolley. It also comes with two M4 bolts at 1" (25.4mm) spacing.
The box measures 50mm x 36mm by 20mm

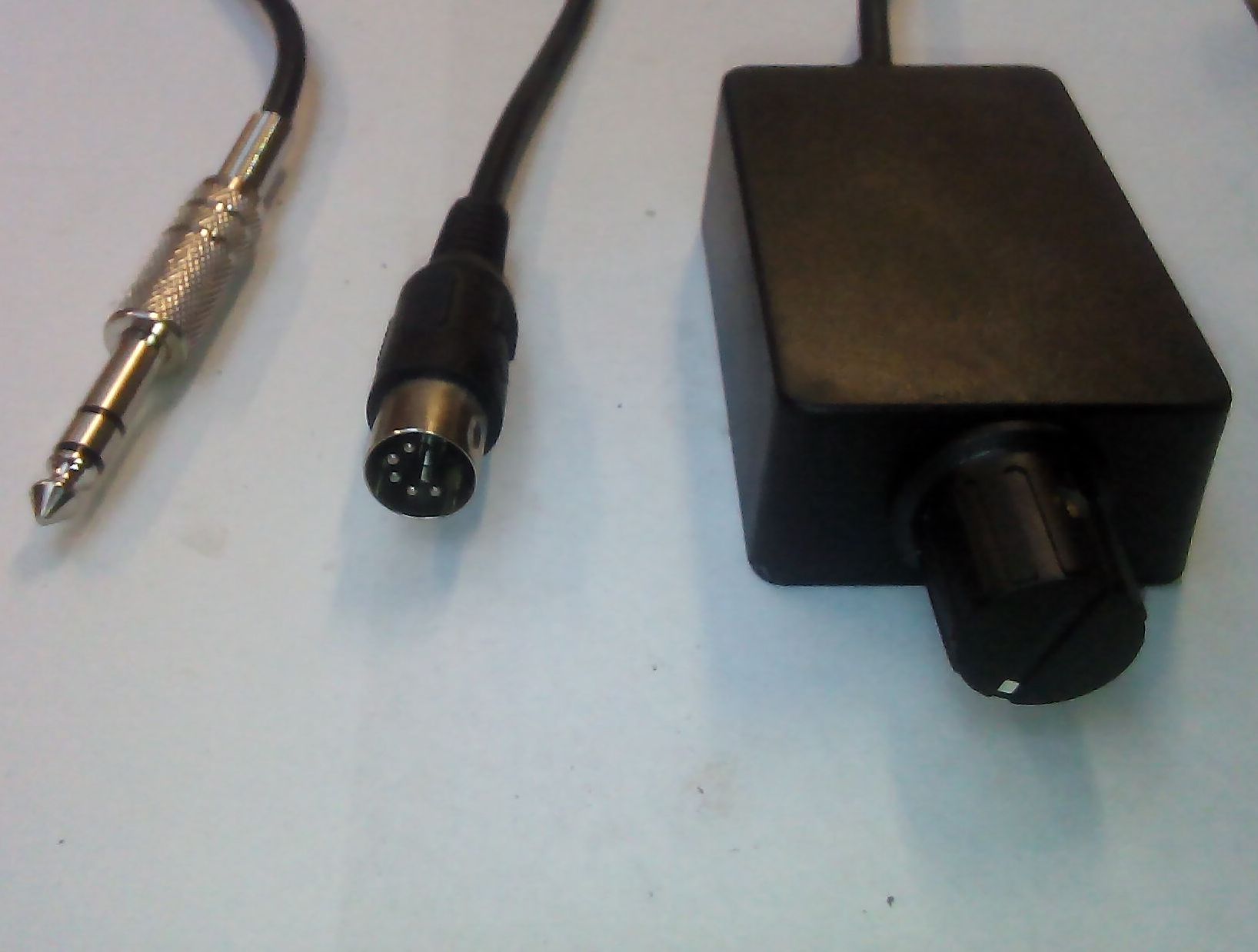

Large handset 10.50
large_handset
This handset  has a terminal block inside allowing the wire to be removed to thread through your trolley. It also comes with two M4 bolts at 1.5" (38mm) spacing.

The box measures 75mm x 50mm x 25mm


Spare Parts

"lazy" switch 3

Waterproof "lazy" switch cover 2

Universal Speed control knob 2.50
